The ECONTROL VG-100 range of gate valves is a comprehensive solution for the oil & gas industry covering all ratings from low to high pressure and high sizes to suite all kinds of customer needs.
Standard features:
• OS & Y type, bolted bonnet.
• Low operating torque.
• Design standard: API 600, testing as per API 6D
• Face to face dimensions as per ANSI B16.10.
• Flange drilling as per ANSI B16.5, RF Serrated.
• Valves with back seat arrangement.
• Deep stuffing box to accommodate more packings.
On-request, optional features:
• Extended bonnet for cryogenic service.
• Locking arrangement.
• Ring joint facings / butt-weld ends.
• Compliance to NACE MR-01-75.
• Charpy V tests.
• Stellited / Hard faces.
• High temperature duty adaptations.
• Cryogenic duty adaptations.
• Jacketed valves.
All valves are offered on manual or actuated version. Electric, pneumatic, hydraulic, electro-hydraulic, pneumo-hydraulic actuation is available. VG-100 valves comply with all API 6D and API 600 standards requirements and are suitable for installation in Emergency Shutdown Systems (ESDV).
| Manufactured sizes | NPS 1/4" thru NPS 80". Higher or special sizes may be developed upon request, please enquiry |
|---|---|
| Pressure ratings | ANSI 150#, ANSI 300#, ANSI 600#. ANSI 900#, ANSI 1500#, ANSI 2500#, ANSI 4500#. Please enquiry for higher or lower ratings |
| Valve connections | ASME B16.5 (FF, RF, RTJ, Threaded), ASME B16.47 Series A or B, MSS SP-44, ASME B16.25 (BW, SW, WE). Please enquiry for special connections |
| Standardization | API 6D, API 600, API 602, API 603, API 6FA, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175, GOST, JIS. Please enquiry for other standards |
| Body | ASTM A216, A105, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations |
|---|---|
| Trim | ASTM A216, A105, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations |
| Seat(s) | PTFE, NYLON, PEEK, NBR, KELF, ENP (Electroless nickel plating), HC (Hard chrome), TC (Tungsted carbide). Please enquiry for different material configurations |
| Sealing | BUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene. Please enquiry for different material configurations |
| Catalogue request | Click here to request a catalogue |
|---|
24" ANSI 600# (API 6D)

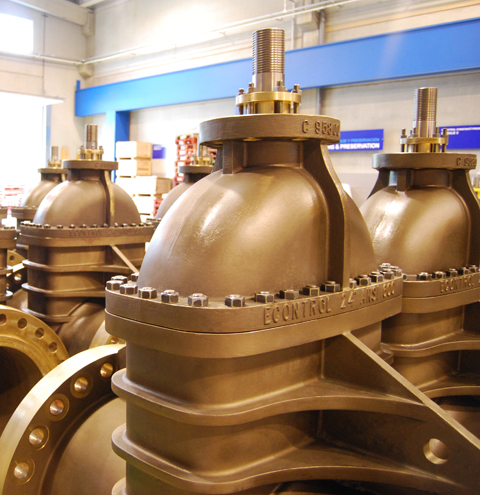

Bolted bonnet for Water Injection service

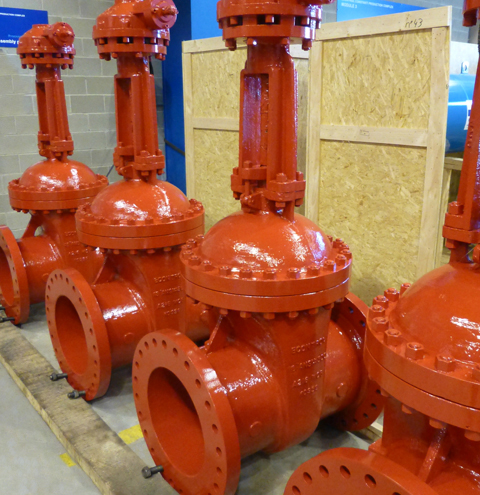

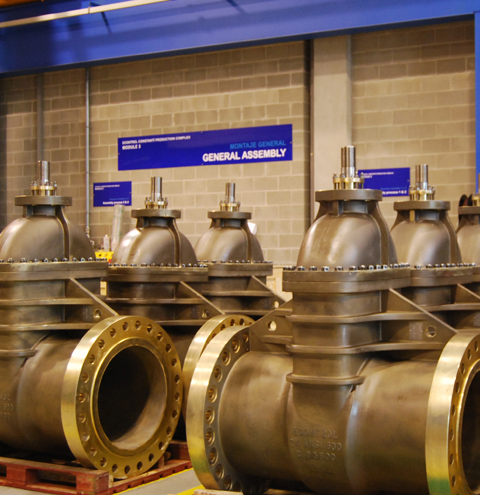

14" ANSI 300# (API 600)
Bolted Bonnet with Epoxy Coating

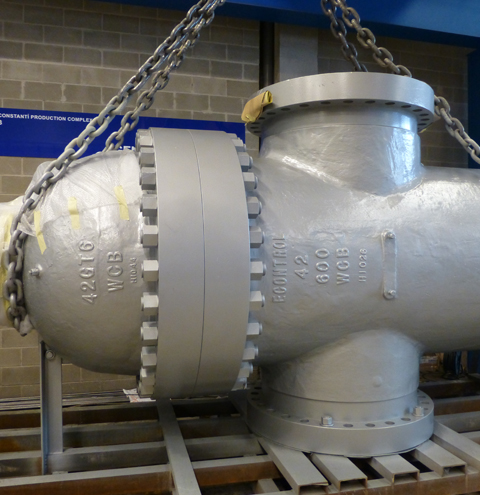

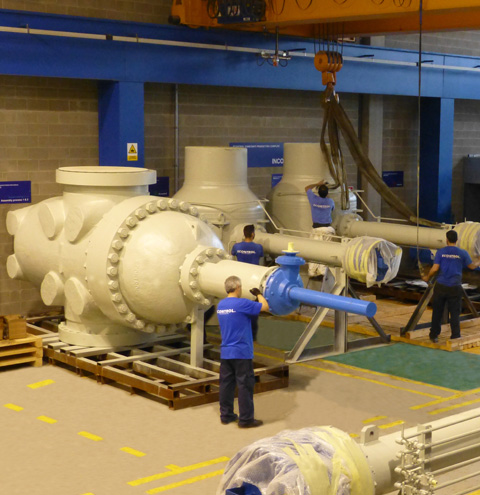

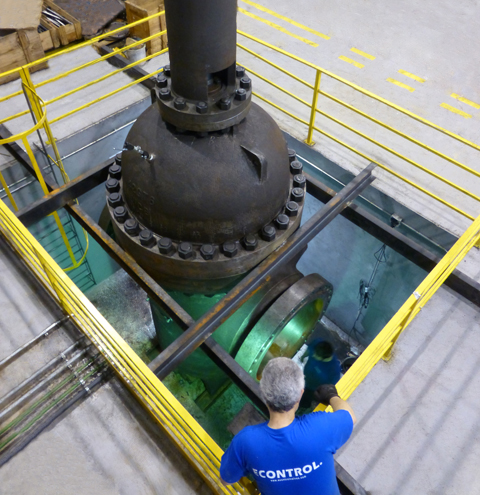

42" ANSI 600# (API 6D)
Through Conduit for Crude Oil export pipeline
42" ANSI 600# (API 6D)
Through Conduit for Crude Oil export pipeline
24" ANSI 600# (API 600)
Bolted Bonnet for Water Injection service
24" ANSI 600# (API 600)
Bolted Bonnet for Water Injection service

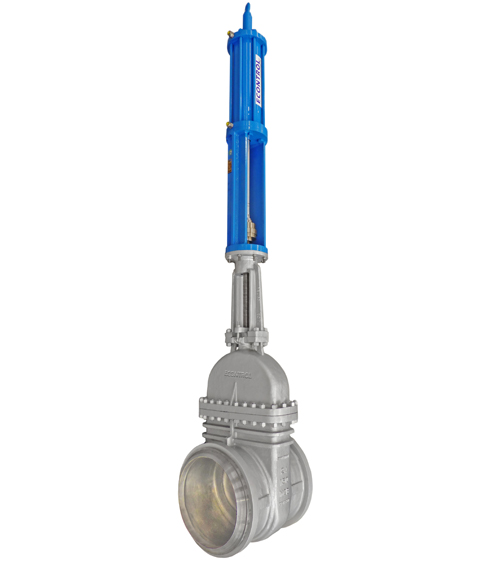

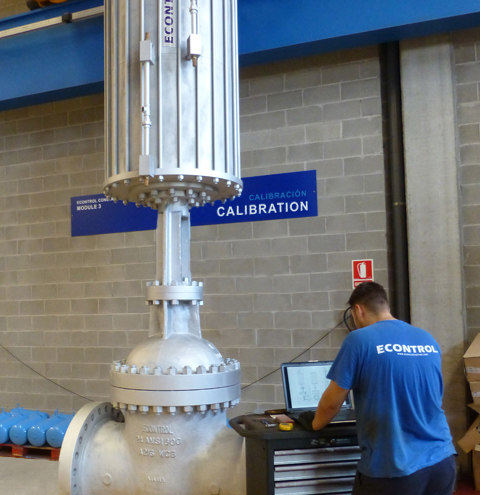

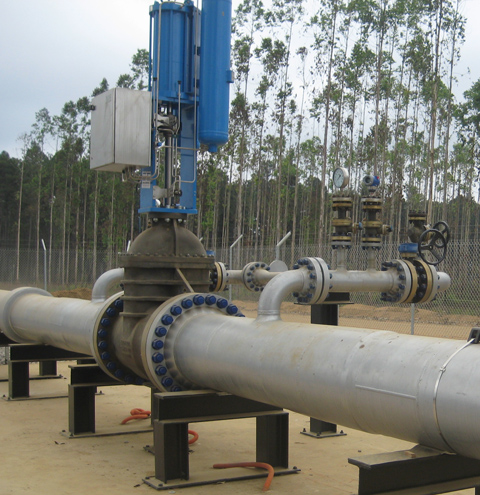

24" ANSI 600# (API 6D)
with Pneumatic actuator
42" ANSI 600# (API 6D)
Through Conduit for Crude Oil export pipeline

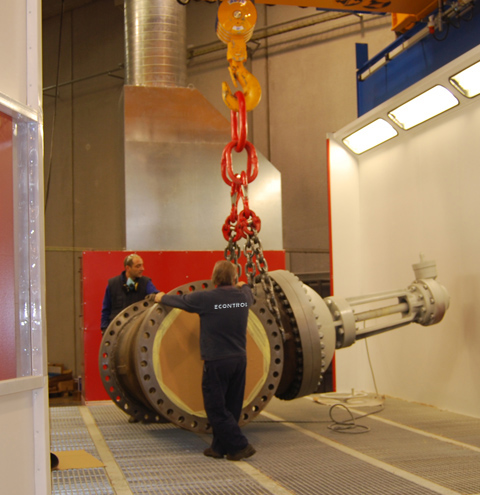

36" ANSI 600# (API 6D)
during painting stage
