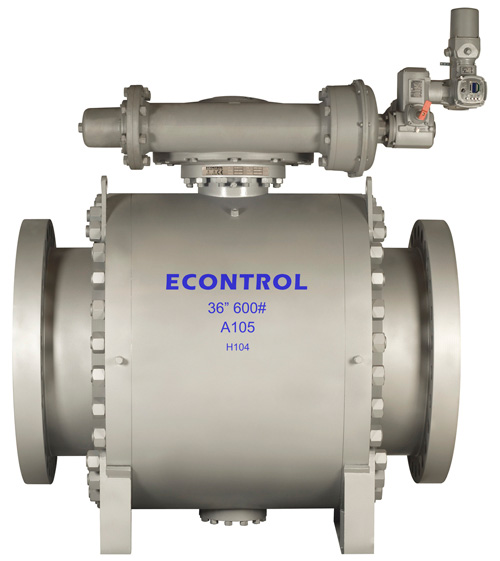

The ECONTROL VB-100: Floating Ball or Trunnion Mounted, Bolted or Fully Welded, Side or Top Entry, Overground or Underground Location, Onshore or Offshore or Sub-Sea, Soft or Metal Seated, All needs covered:
The VB-100 trunnion mounted ball valve series has proven to be excellent in service to major worldwide customers in major oil & gas, petrochemicals, power generation and all main process industry fields, especially appropriate for continuous use under severe services conditions.
The ball is mounted on trunnions for all sizes and pressures in which this valve is manufactured. The sphere and the stem spin freely with the Teflon impregnated metal bearings (DU) that do not require lubrication.
Size by size, the VB-100 series provides effective control throughout a broad range of process temperatures from- 196ºC to +566ºC. All the sub-models of the ECONTROL VB series are the results of years of continuous research and developemnt of ECONTROL's Valve Engineering Unit.
VB-100 series valves sealing system allows installation in service requiring Double Block and Bleed facility (DBB) such as custom transfer metering system. The sealing effect is a direct result of the proportional increase in differential pressure in the line acting on the seats. Upstream and downstream sealing allows the discharge of the body cavity. All VB-100 series ball valves are of fire-safe design according to API 6FA:1999 and API 607:2005 standards.
All valves are offered on manual or actuated version. Electric, pneumatic, hydraulic, electro-hydraulic, pneumo-hydraulic actuation is available. VB-100 valves are suitable for installation in Emergency Shutdown Systems (ESDV) and may be provided with local operation cabinets and with Partial Stroke Test (PST) facility. Being one of Europe's leading ball valve developes, ECONTROL also offers a wide range for comprehensive gas transmission, gas compression services such as top-entry ball valve range and fully welded ball valve range for pipeling applications. All VB series models are approved and qualified for onshore and offshore services.
|Manufactured sizes||NPS 1/4" thru NPS 88". Higher or special sizes may be developed upon request, please enquiry|
|Pressure ratings||ANSI 150#, ANSI 300#, ANSI 600#. ANSI 900#, ANSI 1500#, ANSI 2500#, ANSI 4500#. Please enquiry for higher or lower ratings|
|Valve connections||ASME B16.5 (FF, RF, RTJ, Threaded), ASME B16.47 Series A or B, MSS SP-44, ASME B16.25 (BW, SW, WE). Please enquiry for special connections|
|Standardization||API 6D / ISO 14313, ASME B16.34, BS 5351, API 608, BS EN ISO 17292, API 6FA, BS 6755 Part 2, ASME B16.10, API 598, GOST, JIS, NACE 01-MR-0175. Please enquiry for other standards|
|Body||ASTM A216, A105, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations|
|Trim||ASTM A216, A105, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations|
|Seat(s)||PTFE, NYLON, PEEK, NBR, KELF, ENP (Electroless nickel plating), HC (Hard chrome), TC (Tungsted carbide). Please enquiry for different material configurations|
|Sealing||BUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene. Please enquiry for different material configurations|
|Catalogue request||Click here to request a catalogue|
20" ANSI 900# (API 6D, API 6FA)
Top Entry with Gas-Over-Oil actuator

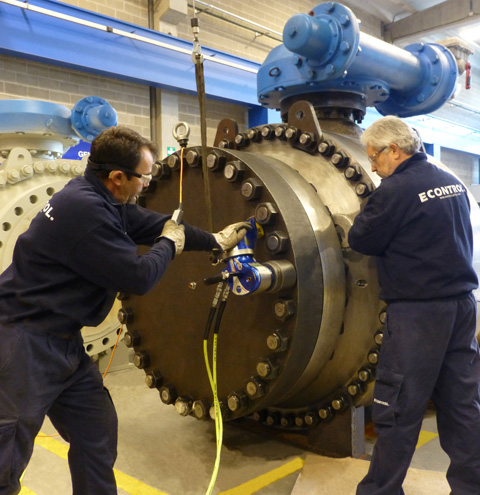

48" ANSI 600# (API 6D, API 6FA)
during preparation for testing

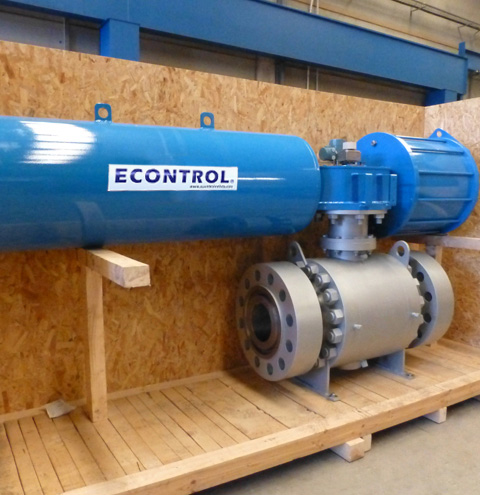

12" ANSI 2500# Severe Service
during packing stage

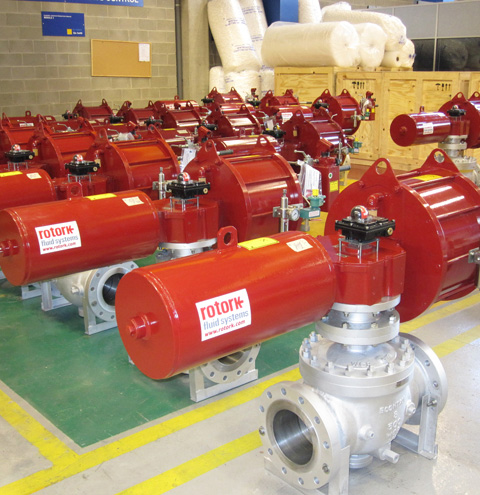

12" ANSI 300# (API 6D, API 6FA)
Top Entry with Pneumatic actuator

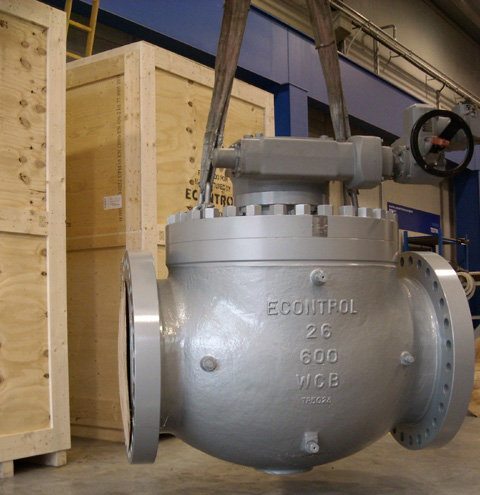

26" ANSI 600# (API 6D, API 6FA)
Top Entry with Electric actuator

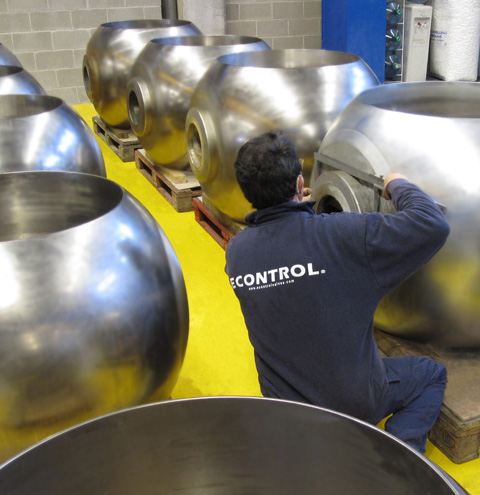

Balls during surface verification
prior to assembly

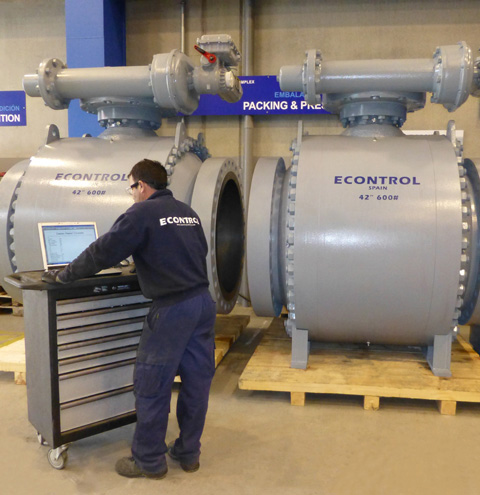

42" ANSI 600# (API 6D, API 6FA)
during digital report issue

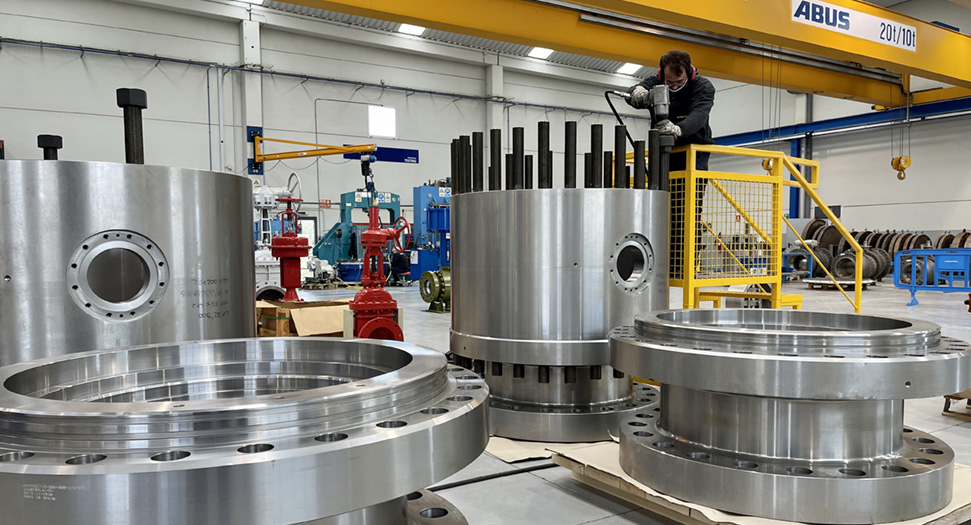

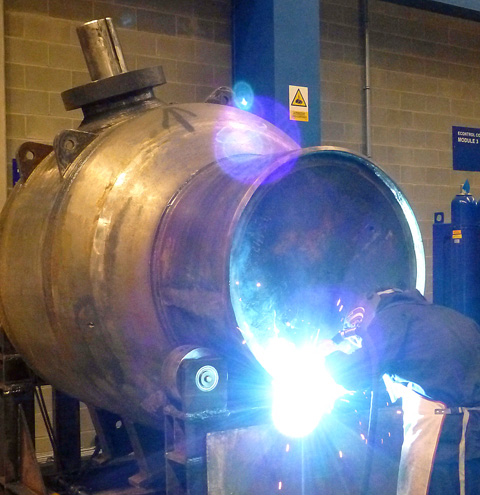

Fully Welded construction (FW)
at welding department

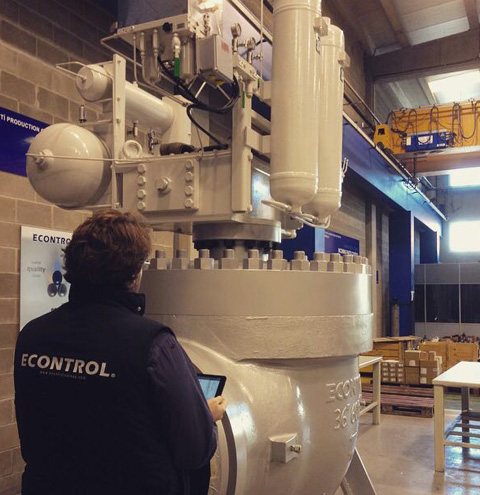

36" ANSI 900# (API 6D, API 6FA)
Top Entry with Gas-Over-Oil actuator
