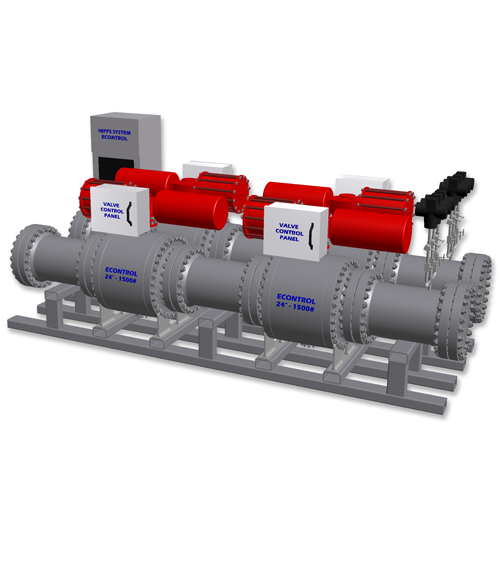

The ECONTROL range of High Integrity Pressure Protection System (HIPPS) is an engineered mechanical and electrical system by our V.E.U. engineers, designed in order to reduce the chance that the protected facility pressure will exceed the maximum allowable pressure.
The protection against overpressure is obtained by immediately isolating the source causing the overpressure.
The entire HIPPS package consists of initiators, a logic solver and the final element. The initiators are field sensors that are the inputs required to detect the hazardous condition.
The logic solver process these inputs and generates correct outputs that change the state of the final elements in order to mitigate the hazardous condition.
The ECONTROL HIPPS packages are used in the energy sector in order to provide pressure protection of pipelines, piping, vessels and process packages against over pressure, allowing the use of lower design pressure downstream the HIPPS.
|Manufactured sizes||NPS 1/4" thru NPS 60". Higher or special sizes may be developed upon request, please enquiry|
|Pressure ratings||ANSI 150#, ANSI 300#, ANSI 600#. ANSI 900#, ANSI 1500#, ANSI 2500#, ANSI 4500#. Please enquiry for higher or lower ratings|
|Valve connections||ASME B16.5 (FF, RF, RTJ, Threaded), ASME B16.47 Series A or B, MSS SP-44, ASME B16.25 (BW, SW, WE). Please enquiry for special connections|
|Standardization||API 6D / ISO 14313, API 6FA, BS 5351, BS 6755 Part 2, ASME B16.34, ASME B16.10, API 598, GOST, JIS, NACE 01-MR-0175. Please enquiry for other standards|
|Body||ASTM A216, A105, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations|
|Trim||ASTM A216, A105, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations|
|Seat(s)||PTFE, NYLON, PEEK, NBR, KELF, ENP (Electroless nickel plating), HC (Hard chrome), TC (Tungsted carbide). Please enquiry for different material configurations|
|Sealing||BUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene. Please enquiry for different material configurations|
